Higher speed, bigger jumps, bigger hits. All of this led to revolution on the field of DH groupsets. Or evolution? Sram reveals new wireless XX DH Transmission groupset.

When every millisecond counts and the podium is on the line, XX DH Transmission delivers a true edge: full-power shifting under load, confidence inspiring toughness, and fully focused silence. That means you can drop the hammer without hesitation—out of the start gate, through the motorways, and across the finish line. Built with a Full Mount derailleur, burly, purpose-built aluminum cranks, and a chainring designed to take the hits, it’s made to charge harder, ride faster, and stay composed through whatever chaos the track throws at you. It’s calm in the storm, letting you stay locked in on the run that matters most.

When milliseconds decide the difference from first to second, every advantage counts.

It pays to shift

DH racers routinely push E-MTB level wattage out of the start gate or into the finish line. With traditional cog-and-chain technology, they may lose up to half their power during a shift as they momentarily ease off to let the chain disengage and re-engage safely. This means they’re giving up time and pace with every shift. XX DH’s Cassette Mapping means you never need to let up, allowing for full power through every shift, with no loss in momentum. This means that every shift is faster, helping you bank milliseconds with every gear step. No hesitation, no let-up, just pure race pace.

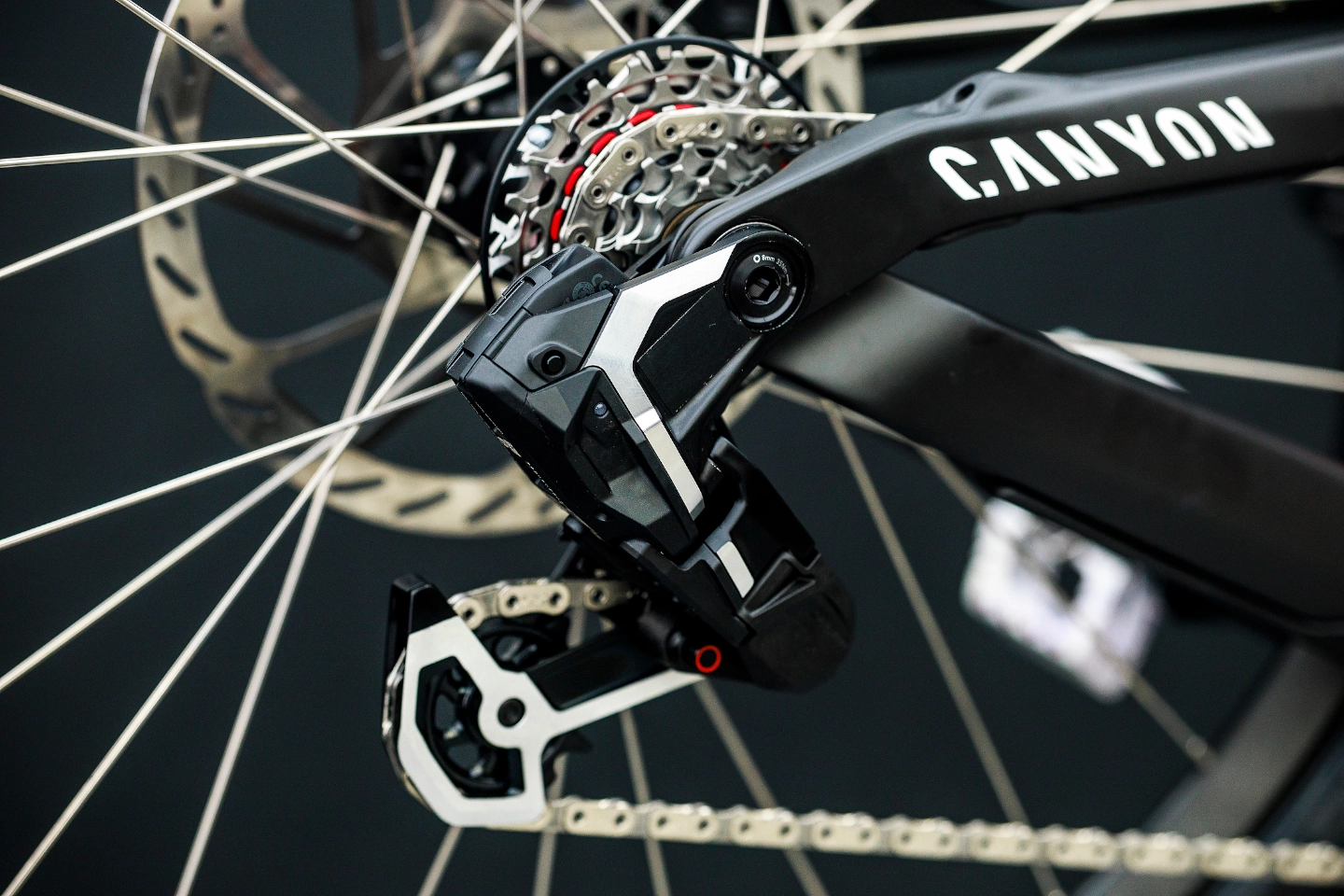

Advantage, precision

The 7-speed XX DH Transmission cassette is engineered to deliver significant power. Its full X-SYNC tooth profile design makes it the foundation of our most confident and fastest downhill shift yet. Paired with an AXS firmware-driven shift sequence, it unlocks Cassette Mapping, which maintains continuous chain engagement for pure, uninterrupted power transfer.

Confidence for when the fast line is anything but smooth.

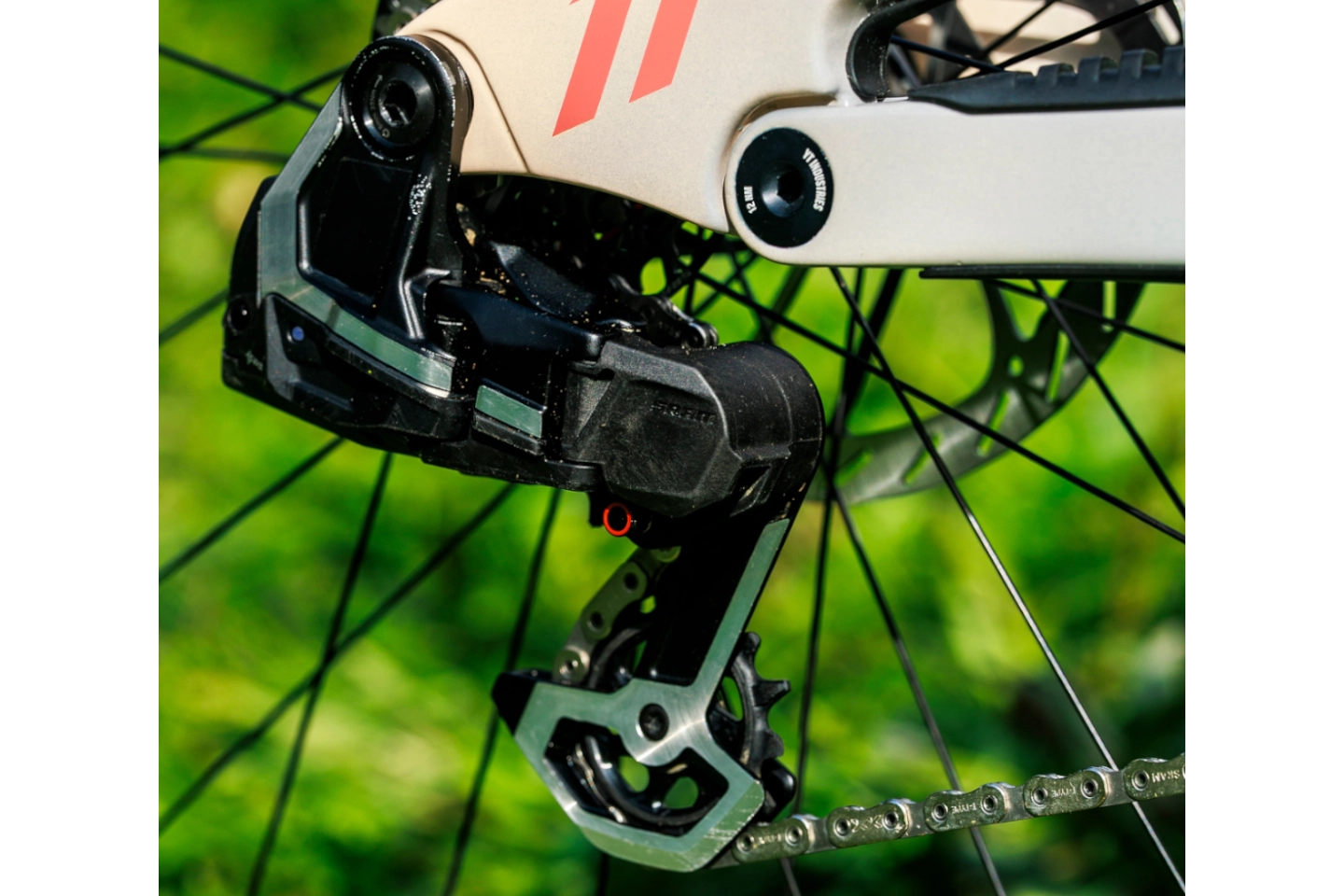

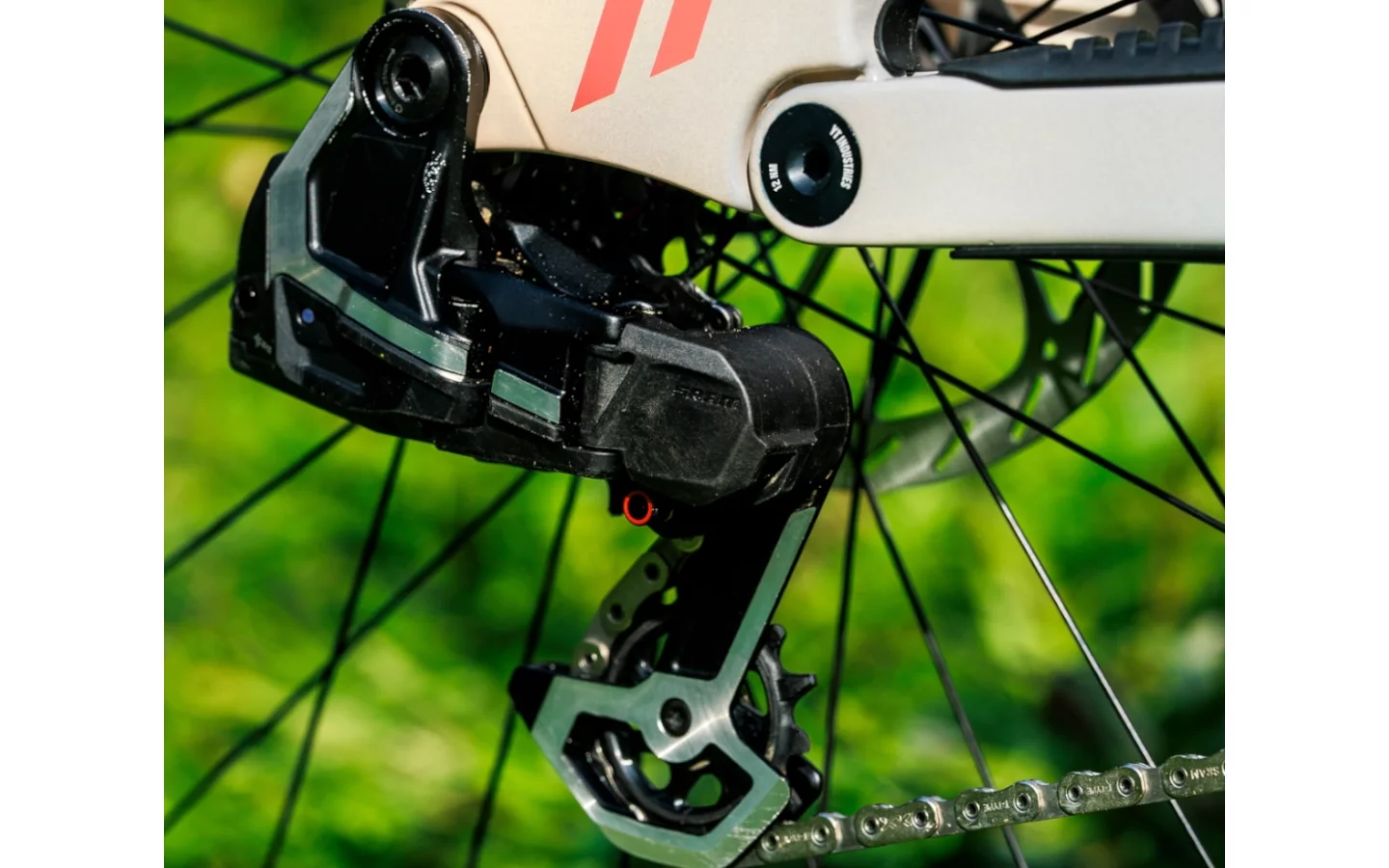

Locked in

The strongest DH derailleur available. Period. Utilizing the now standard Hangerless Interface, XX DH takes the same robust architecture as our other Transmission derailleurs and delivers an even more robust, DH-focused design ready for World Cup start huts or the gnarliest freeride lines. Full Mount clamps around both sides of the frame itself and eliminates the need for a hanger, allowing the derailleur to rotate backward in the case of an impact. The XX DH rear derailleur features rebuildable components: skid plates, outer link, and the DH-optimized Inline Cage.

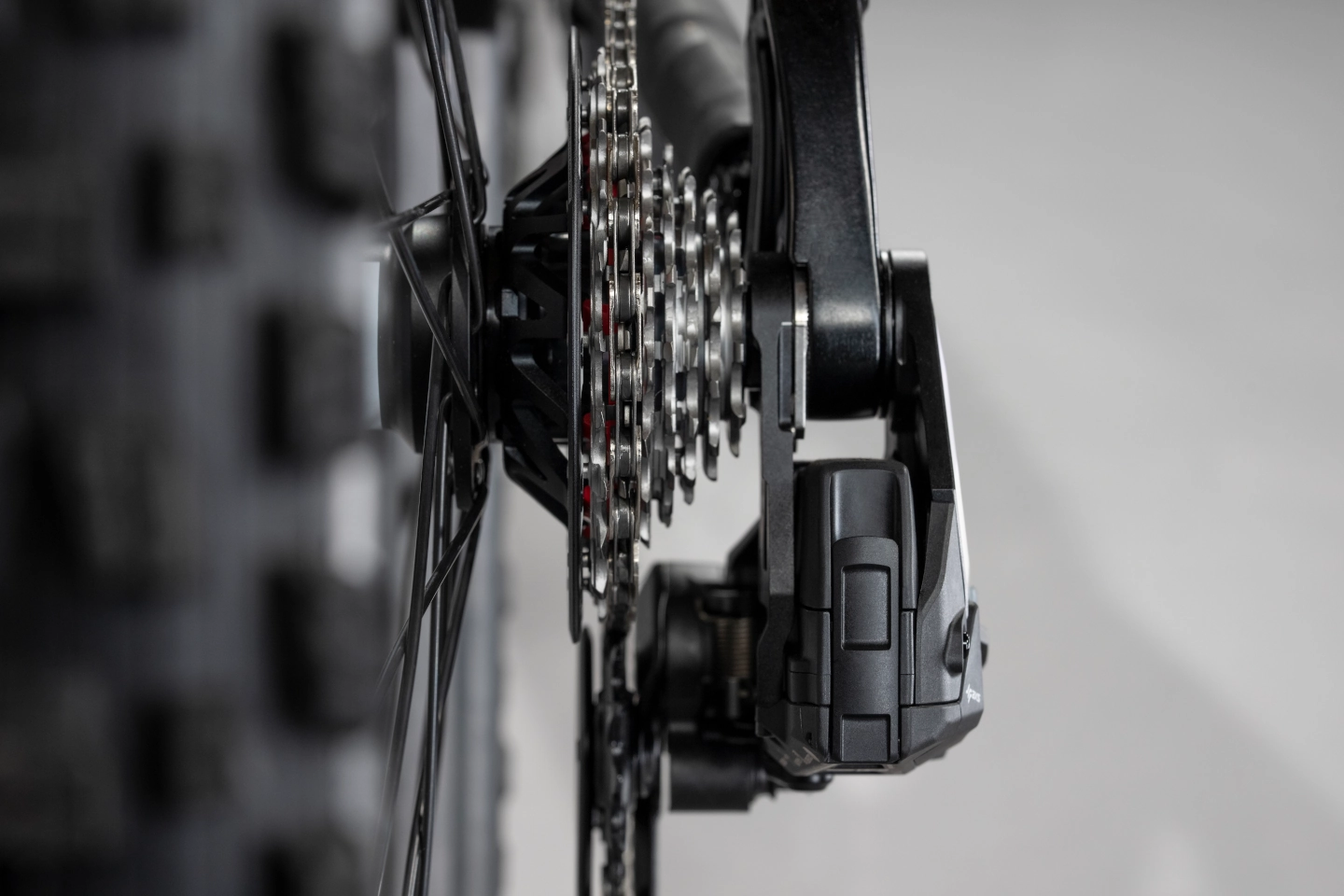

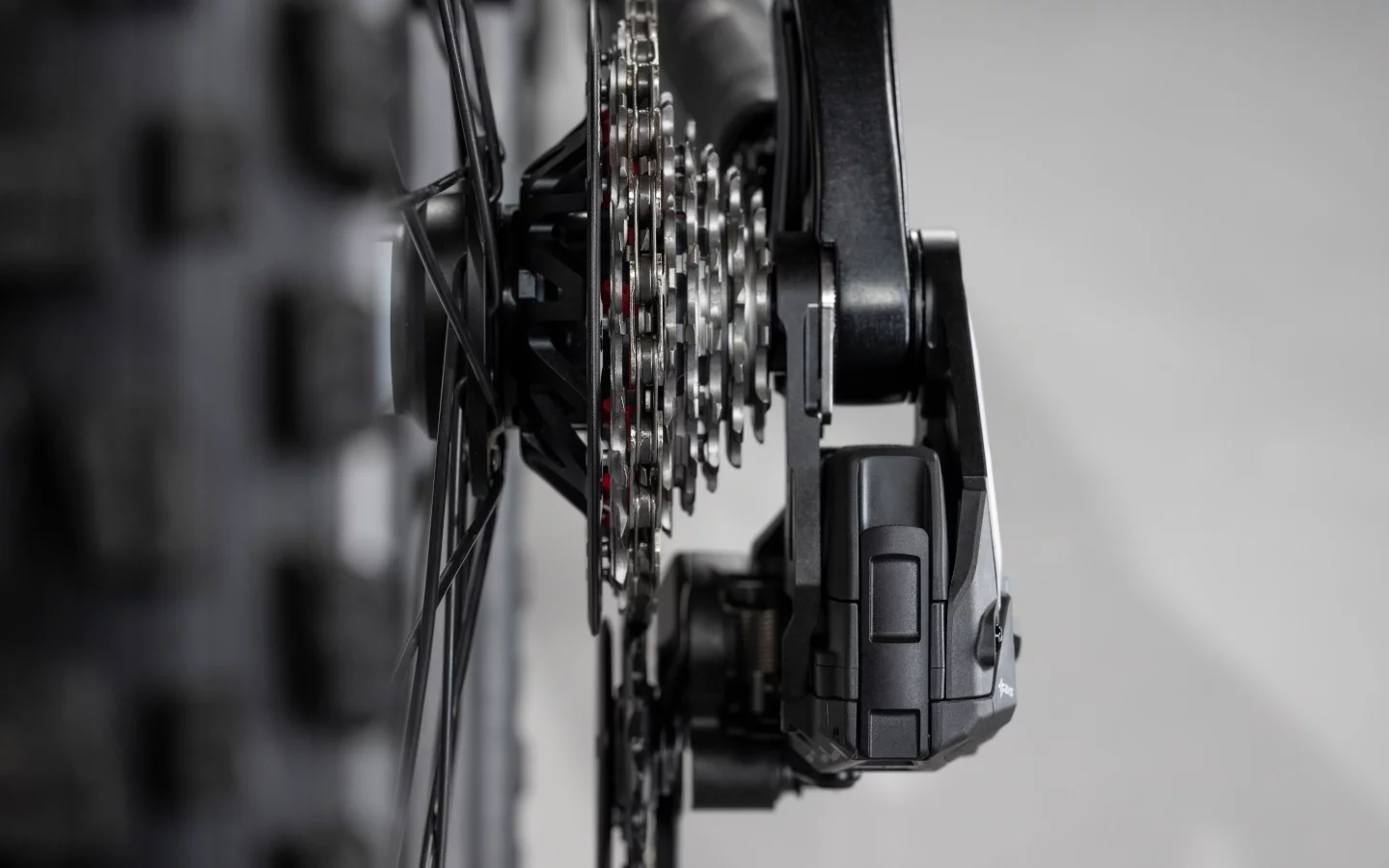

Tight and tidy

With a Full Mount derailleur positioned as far inboard as possible, XX DH sits out of harm’s way. And as more downhill bikes adopt the 148mm rear hub standard, derailleur and rotor components move inboard, giving your heels more clearance. Building on this, the XD SLIM hub standard enables the narrowest possible spoke bracing angle and a symmetric spoke bracing angle, delivering stronger, faster wheel builds and improved tensioning. Together, these elements form a complete drivetrain, wheel, and brake system optimized for maximum clearance and superior race tuning.

148mm rear hub spacing creates more clearance for RD, rotors, and heels
XD SLIM Freehub bodies create a symmetrical bracing angle for stronger, evenly tensioned wheels
Full Mount RD sits further inboard than classic mount RD

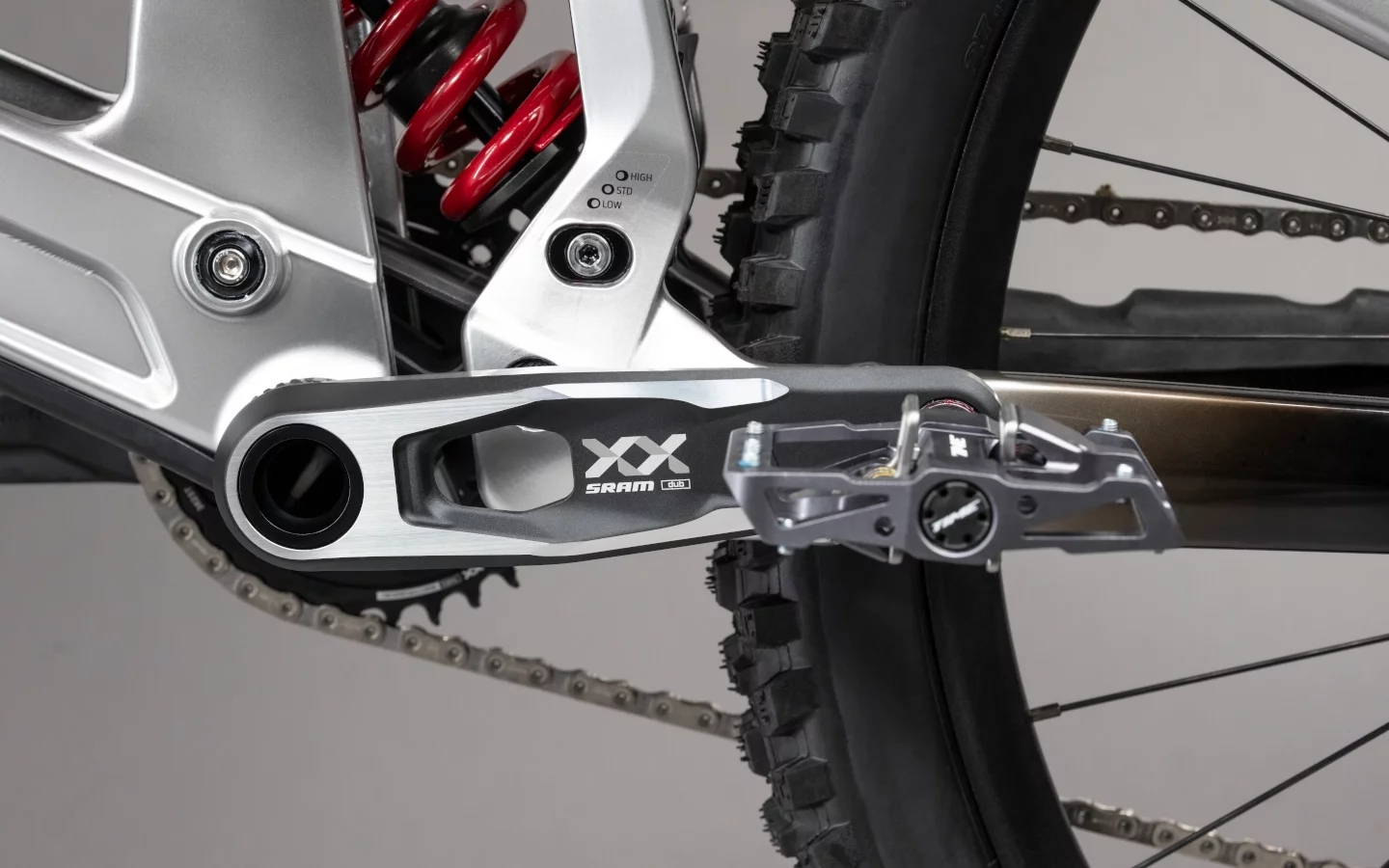

Machined for wear

Drawing on our best aluminum crank, we designed a ground-up, purpose-built, battle-ready DH crankset. The robust XX DH arms feature machined surfaces in high-wear and rock strike-prone areas, keeping your cranks looking fresh for longer. For greater ground clearance and more weight-balancing options, XX DH crank arms are available in progressively shorter lengths, ranging from 165mm to 150mm.

The last chainring standing

By increasing folding and impact resistance, the all-new XX DH T-Type chainring is specifically designed to withstand the heaviest demands of downhill riding.

Downhill is loud, but XX DH stays silent— no rattle, no slap, just pure, focused performance.

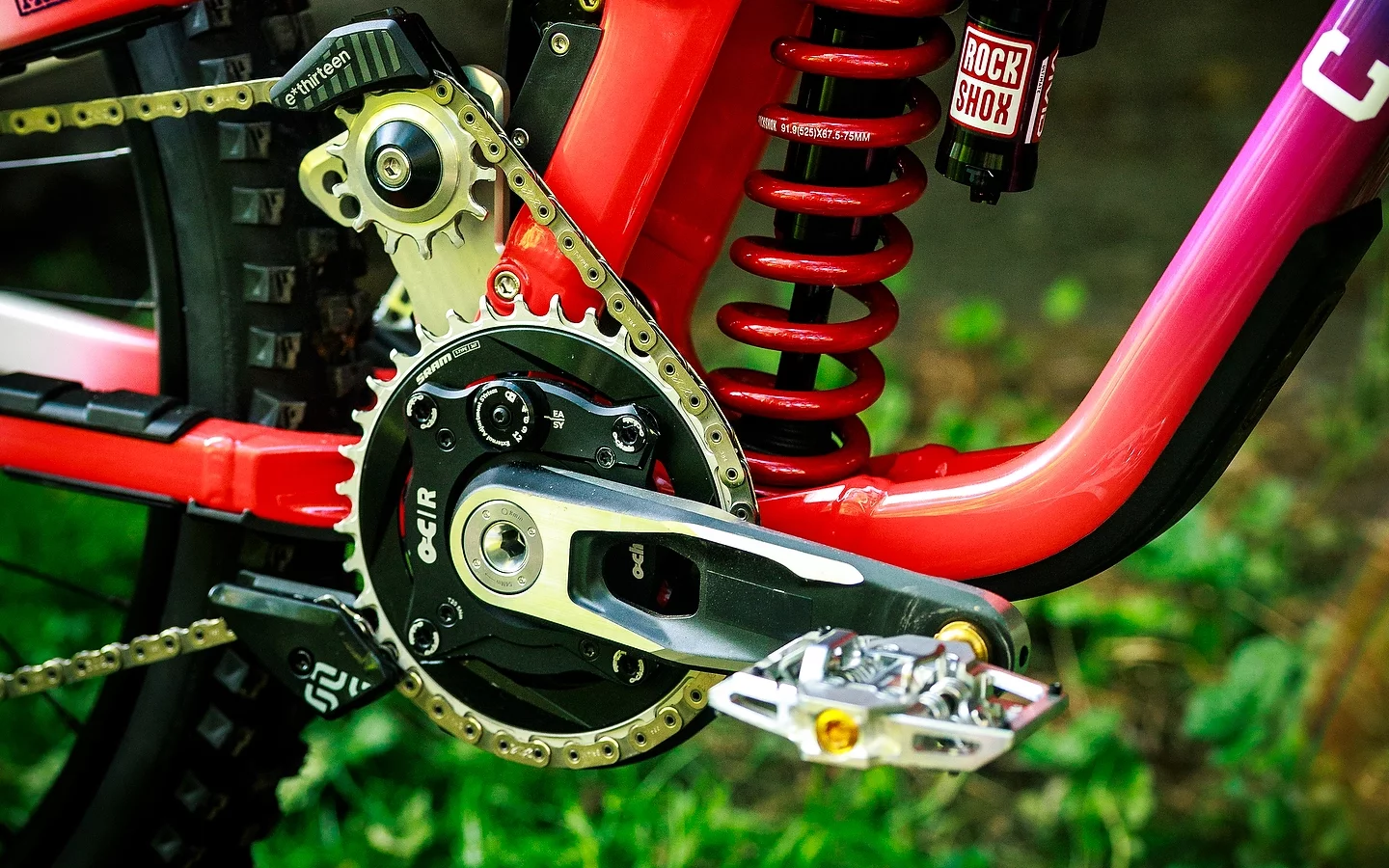

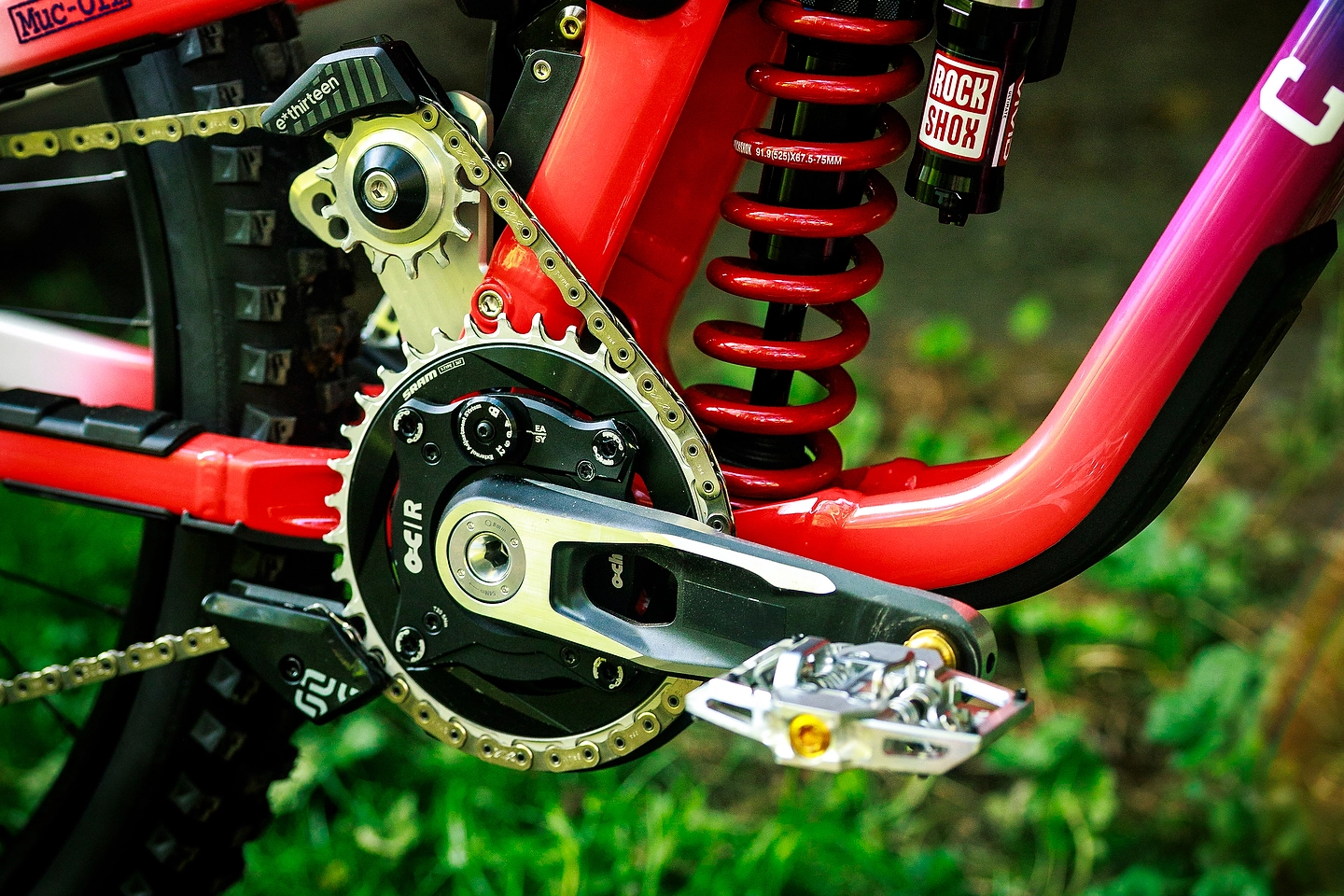

Ochain ready

For top-step descending performance, pair XX DH with an Ochain spider damper. Ochain absorbs pedal feedback to deliver unmatched traction, control, and confidence. The 104bcd XX T-Type chainring ensures full compatibility for better chain retention for a smoother, more confident pedal feel.

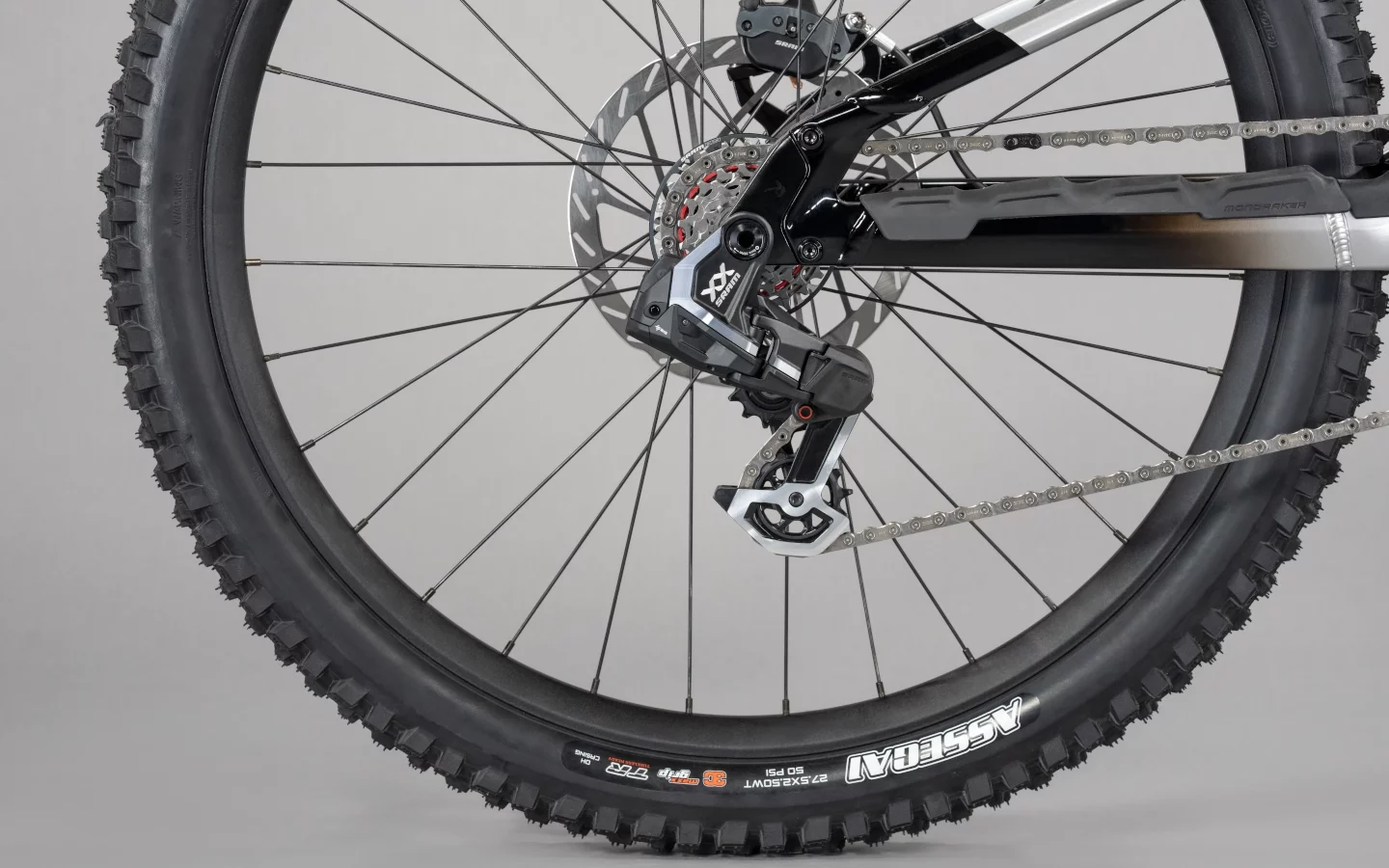

Chained together

XX DH Transmission isn’t Eagle, but it taps into the Eagle Transmission Ecosystem where it counts. Shared T-Type components open the door for more mix-and-match flexibility across builds. At the heart of the system is the XX Eagle Transmission Flattop Chain with a hollow-pin design and Hard Chrome finish, delivering maximum strength and long-haul durability. And for slopestyle or aggressive Enduro builds, XX DH cranksets are available with DUB MTB Wide spindles for 55mm chainline.

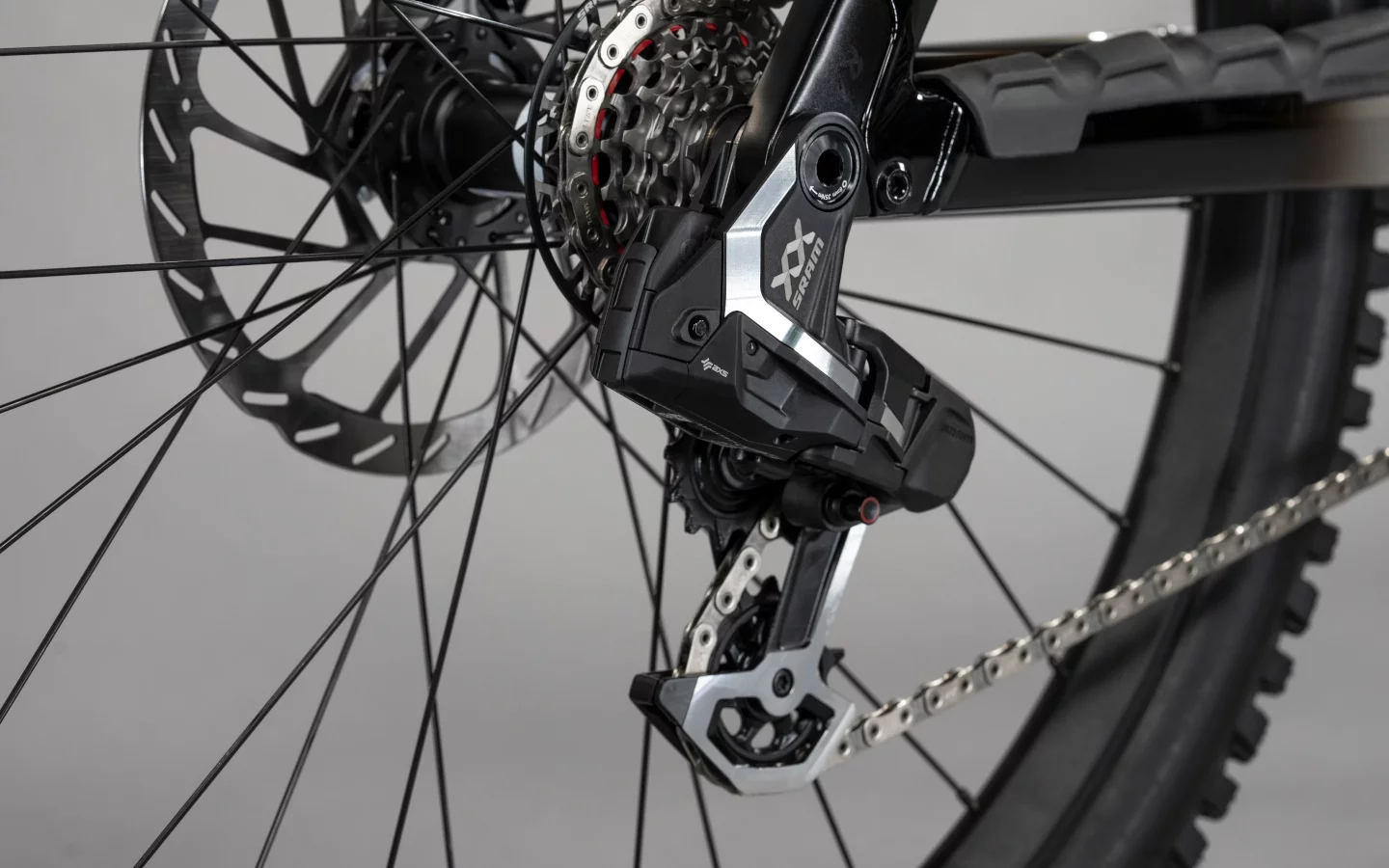

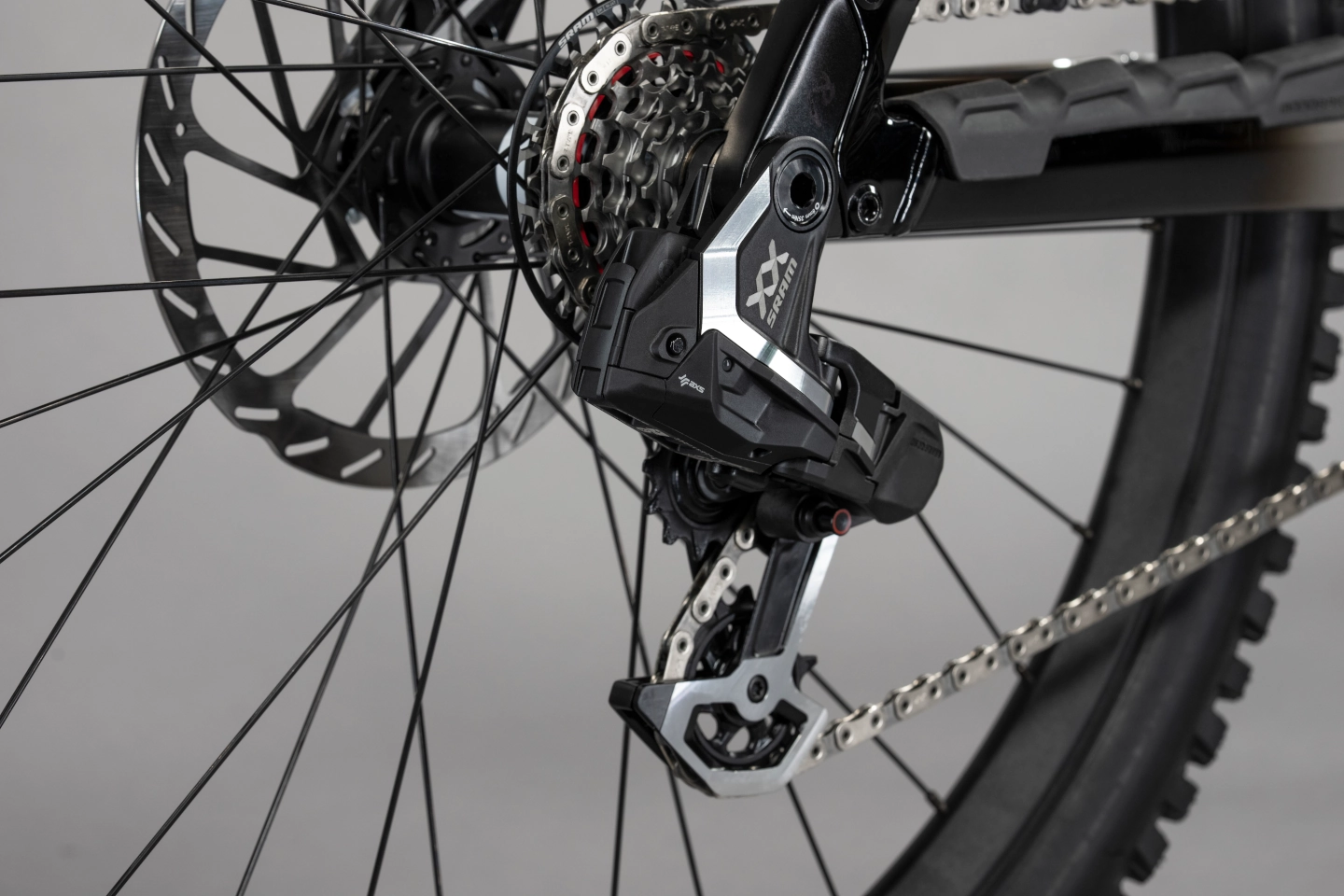

Prepare. Hang. Tighten.

Time in the pits is practice time missed. That’s why XX DH uses a similar prepare, hang, tighten set up procedure as Eagle Transmission, making rebuilds and swap-outs as efficient as possible. And for the first time, AXS comes to downhill, eliminating cable housing contamination, routing complexity, and number plate interference.

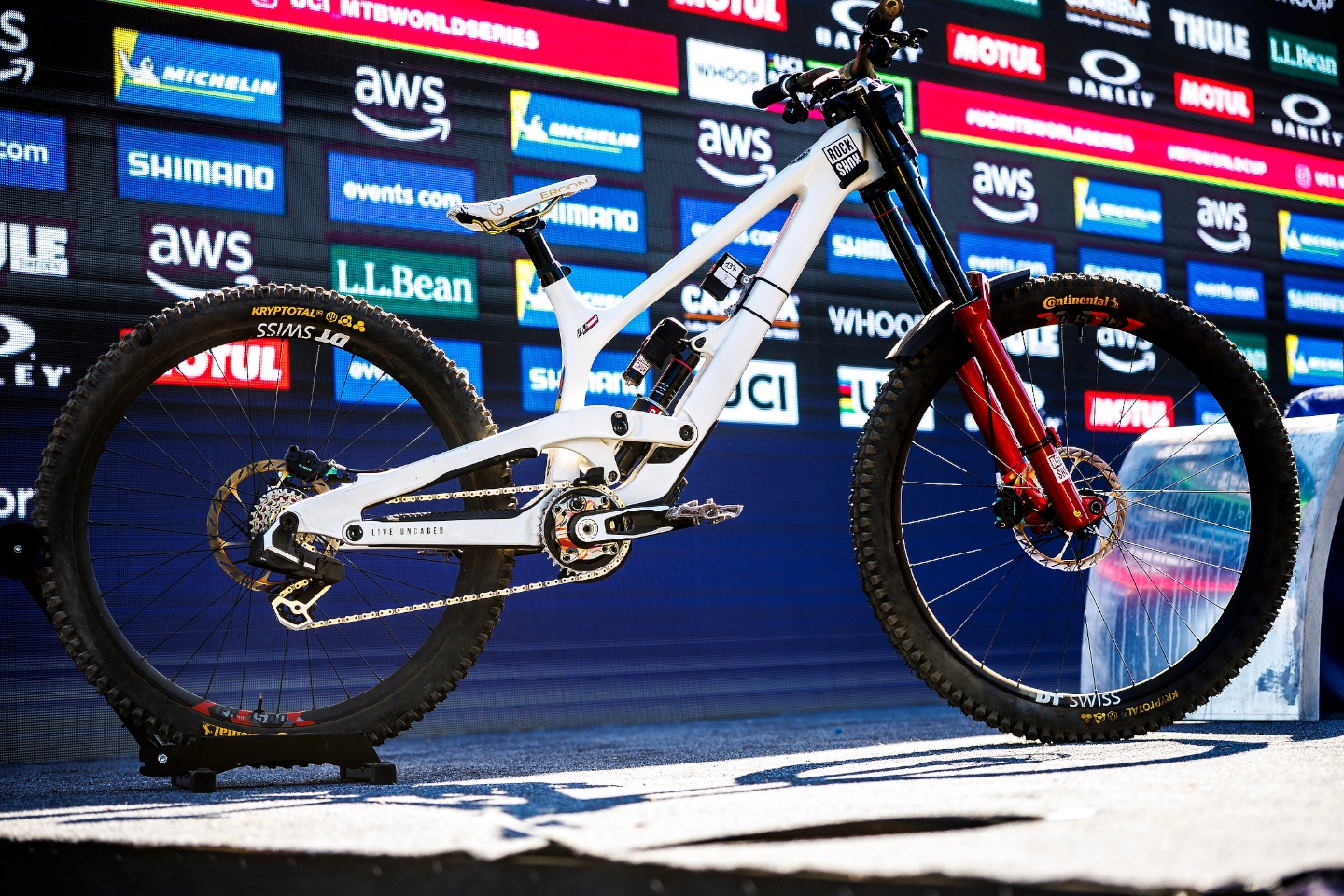

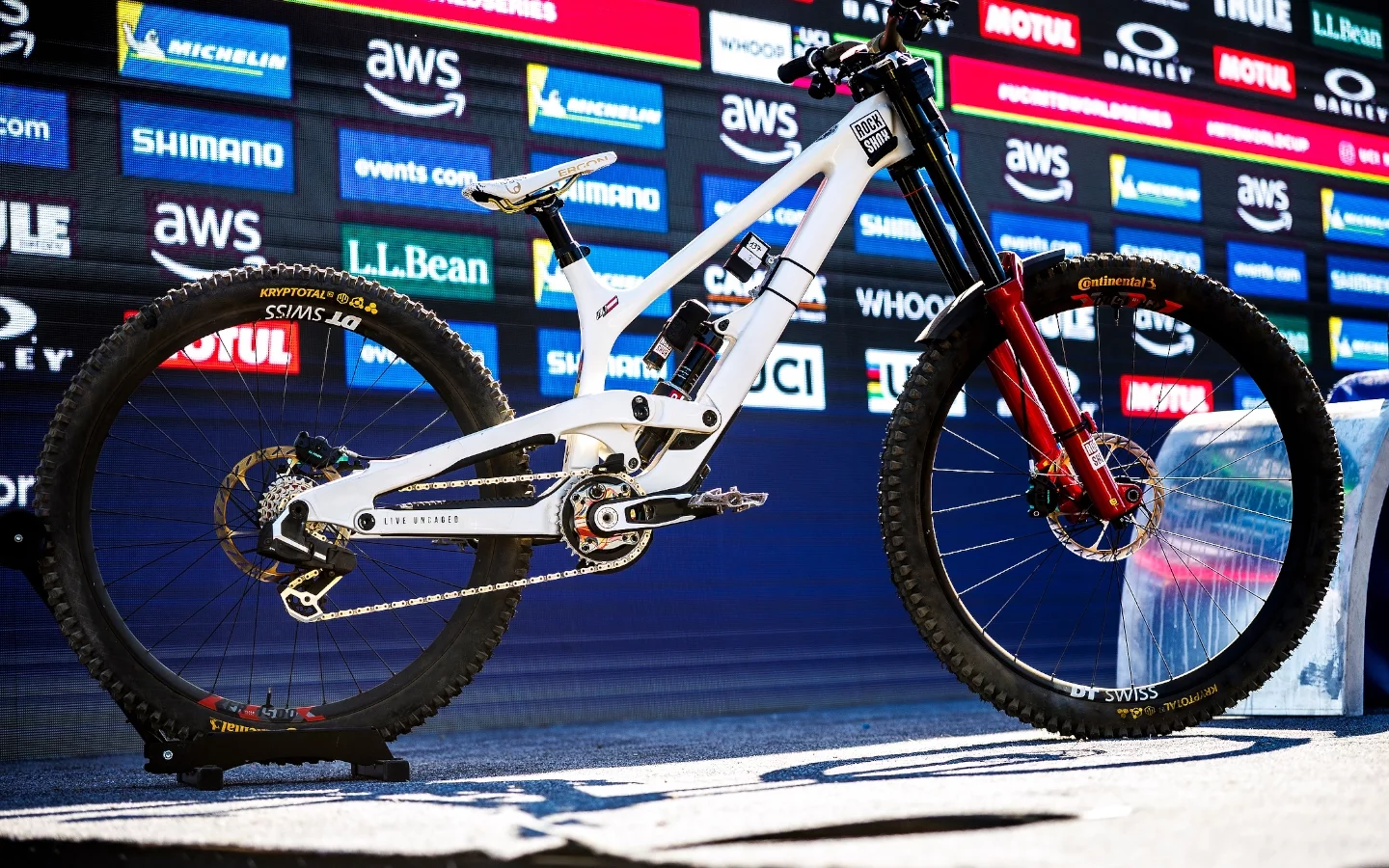

Podium proven and ready to race

Raced to multiple World Cup wins and a UCI World Championship, XX DH is our highest-performing downhill groupset. Its proven best-in-class shift under load performance helps you find valuable milliseconds, while burly race-developed components provide confidence to charge off the line with zero hesitation. Add the finishing touch: bold black ano with silver-machined details for a classy look worthy of the XX mark.

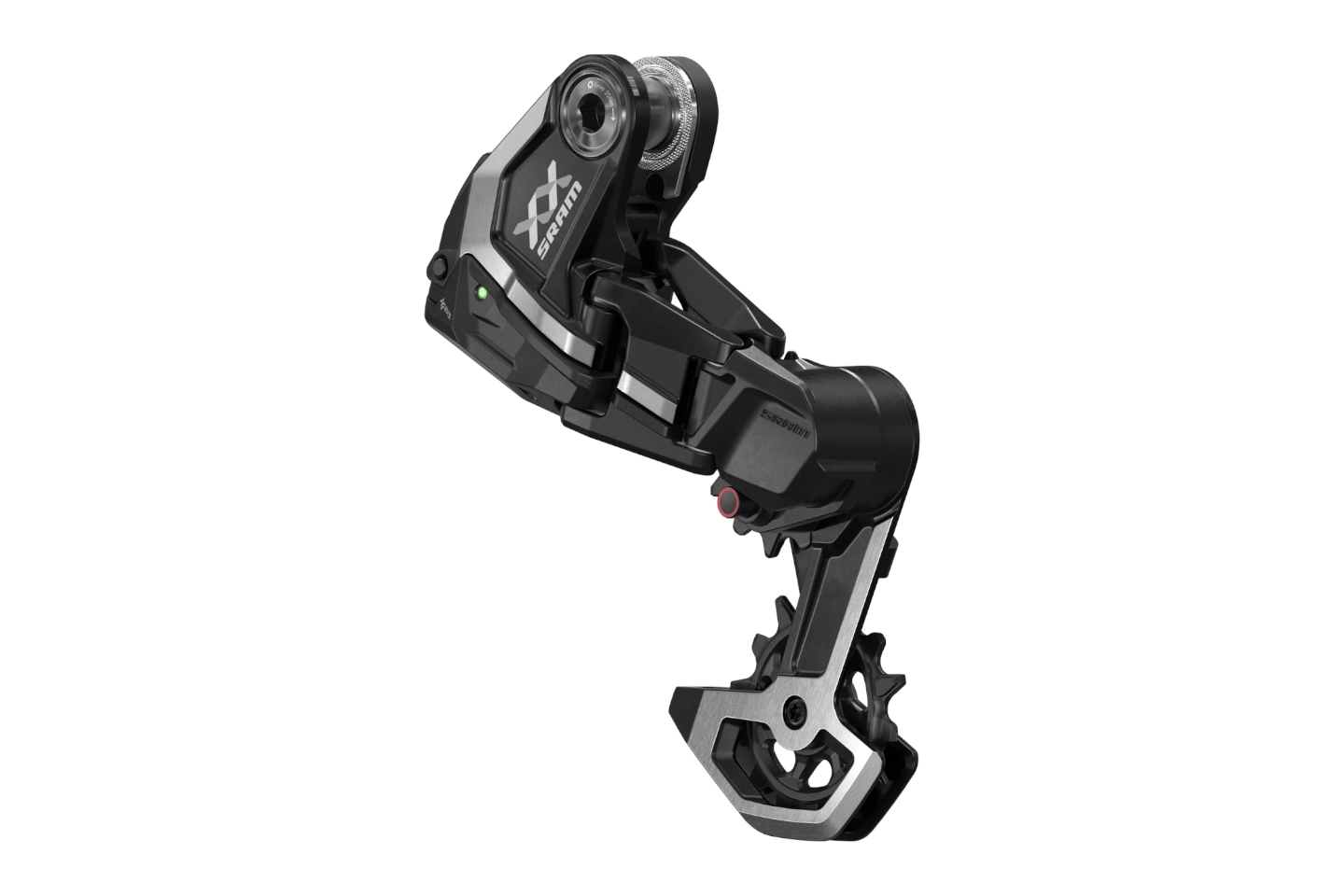

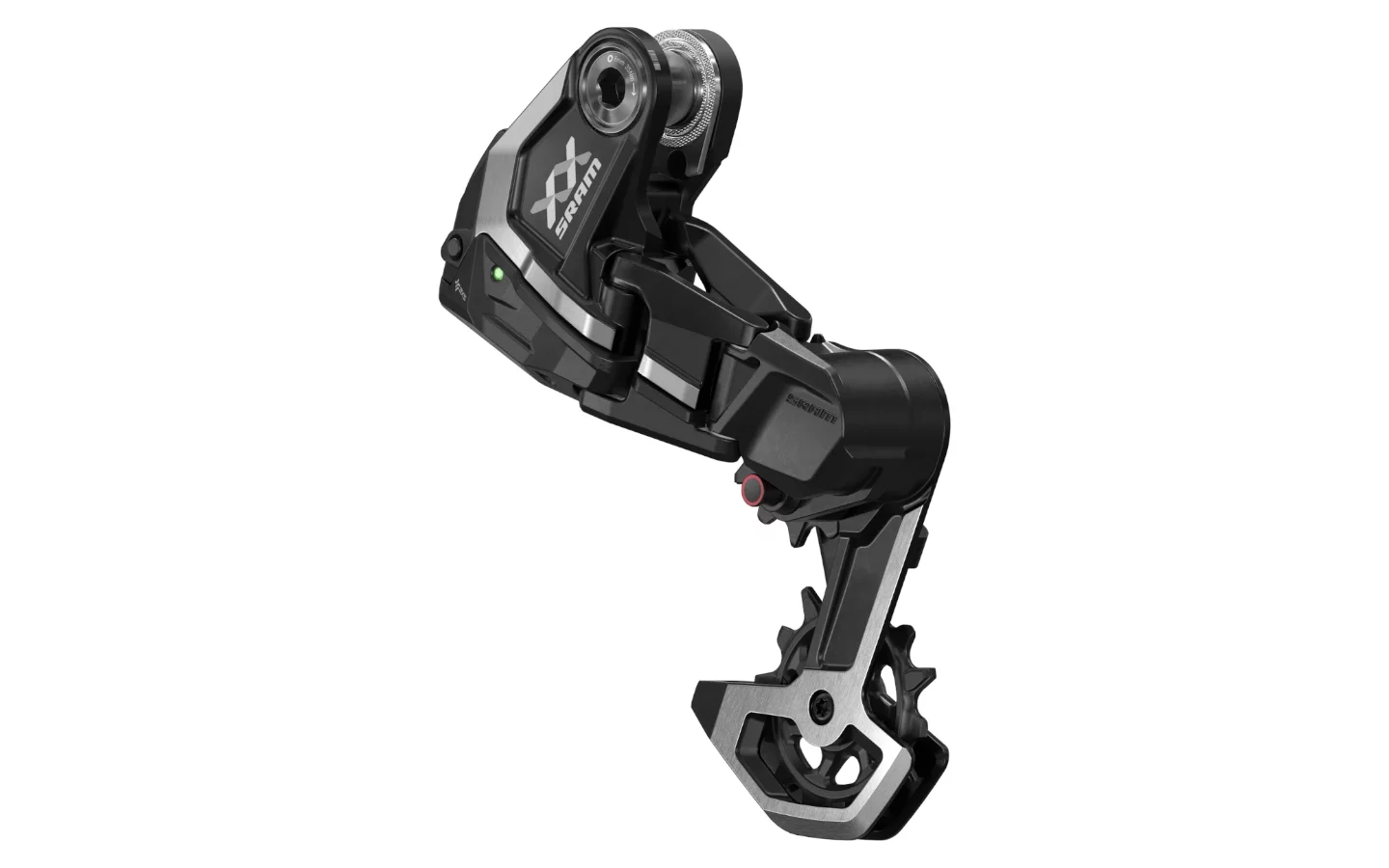

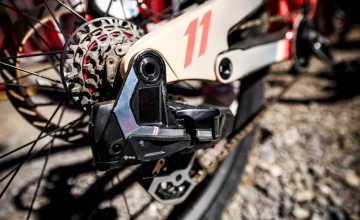

XX DH Transmission Derailleur

The strongest DH derailleur available. Period. Utilizing our Full-Mount design, the XX DH Transmission Derailleur takes the same robust architecture as our other Transmission derailleurs and delivers an even more robust, DH-focused design ready for World Cup start huts or the gnarliest freeride lines. With the power of AXS, we can deliver the most precise shifting and the cleanest cockpit. As with T-Type, the derailleur and cassette are designed to work in lockstep via Cassette Mapping, delivering consistent chain engagement for uninterrupted power transfer. Meaning you can shift when and where you want, whether it’s the start ramp or sprinting full gas to the line.

Hangerless Interface and Full Mount attachment allow for the most precise shifting and the ultimate resistance to impact
Install and pair via the reliable and familiar standard AXS set-up and pairing procedure
Replaceable skid plates, outer parallelogram link, and rebuildable thread-on cage assembly
Most robust DH-specific Inline Cage features a flat outboard surface for easy maintenance
Type 4 damper results in very quiet operation through the roughest tracks
T-Type chain compatibility only

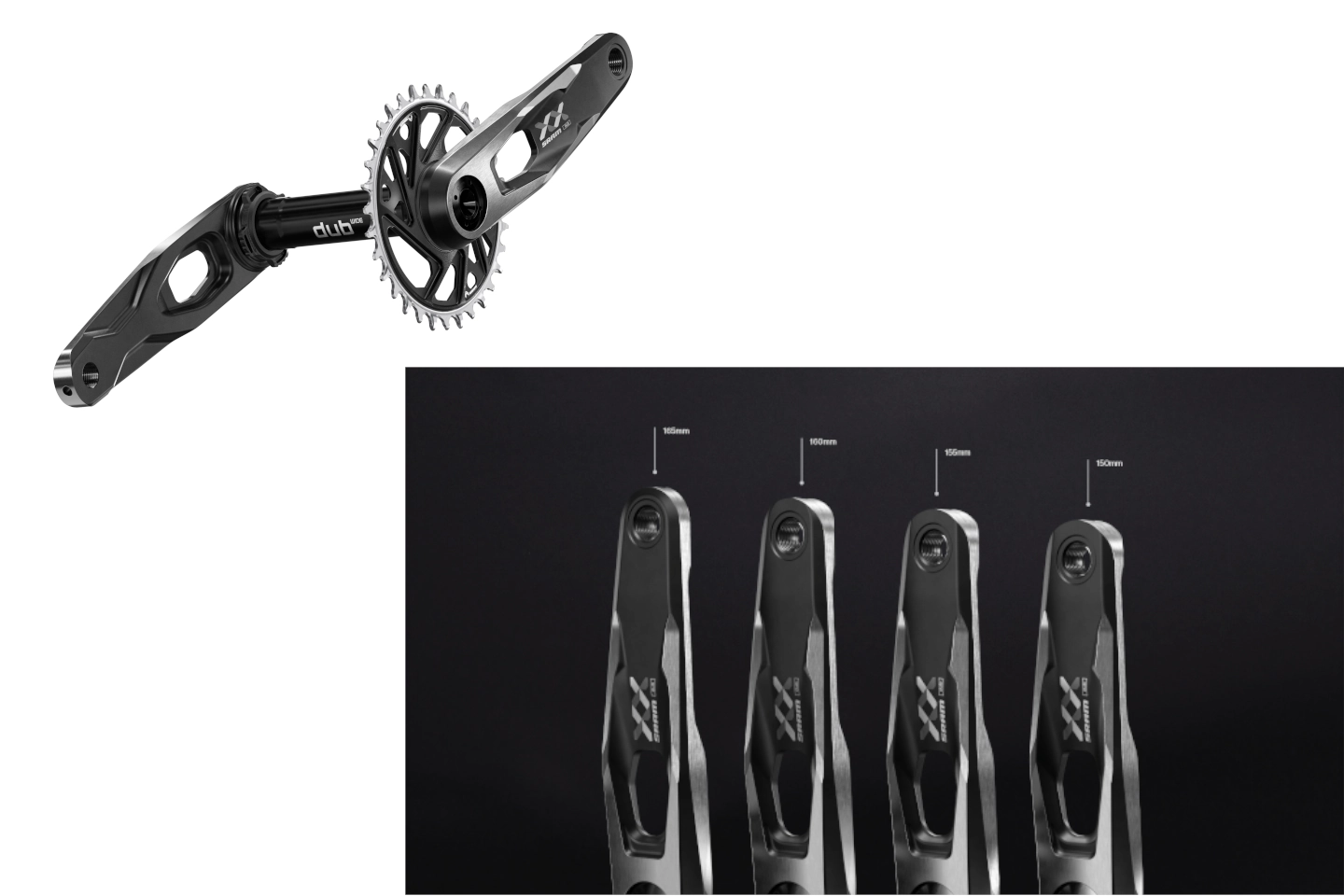

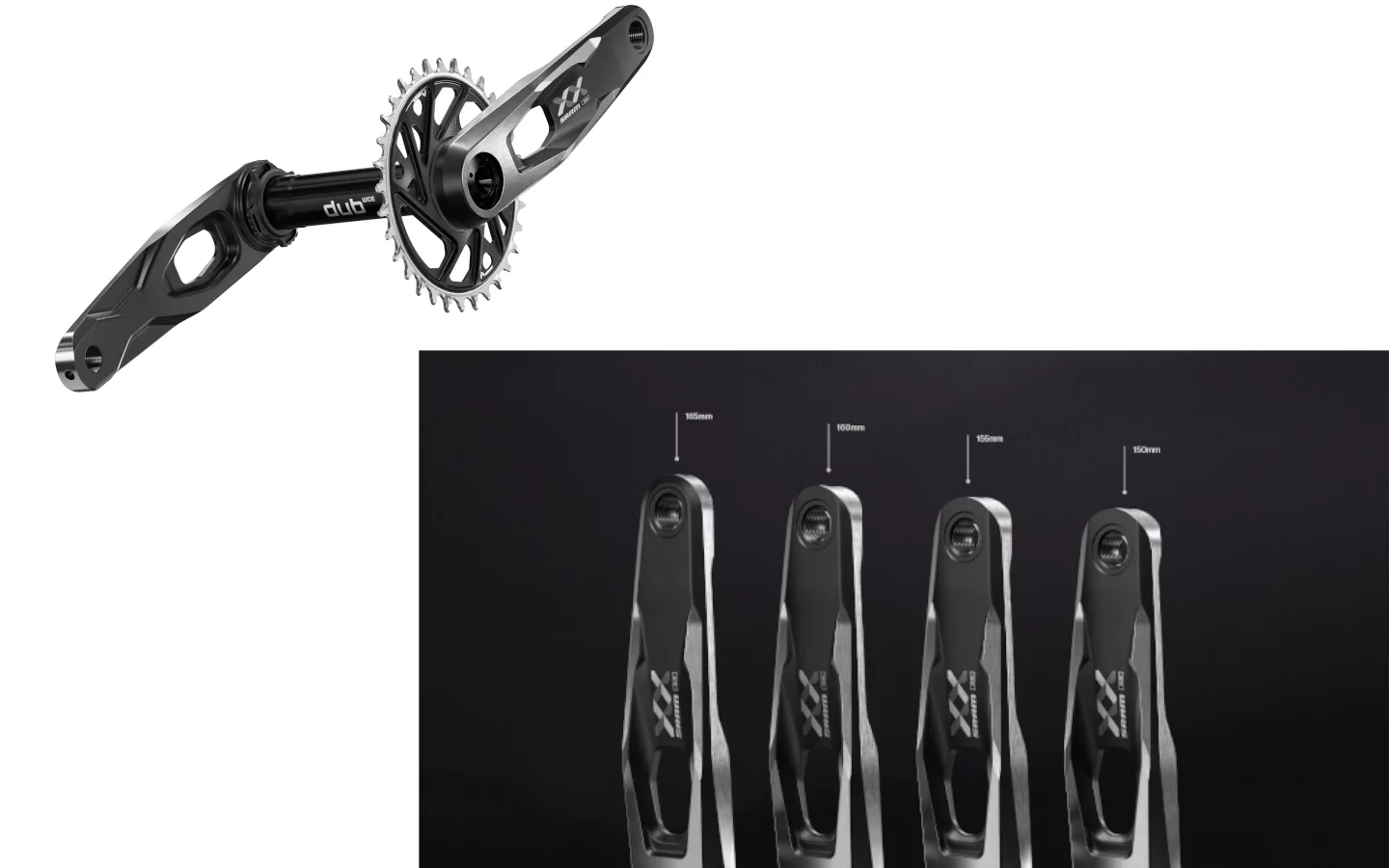

XX DH Transmission Crankset

Uncompromising durability and performance for DH is here with our new XX DH Transmission Crankset. Taking cues from our best aluminum crank, we designed a ground-up, purpose-built, best-in-class strength-to-weight DH crankset. The robust arms are available in progressively shorter lengths, down to 150mm, and feature machined surfaces in high-wear and rock-strike-prone areas. Keeping your cranks looking fresh for longer. By increasing folding and impact resistance, the all-new XX DH T-Type chainring for 56.5 chainline is specifically designed to withstand the heaviest demands of downhill riding.

Our most durable aluminum crankset yet, with robust machined finishes on high-wear surfaces and rock strike-prone areas
DUB DH spindle for 56.5mm chainline, for either 157mm or 148mm rear hub spacing
DUB Wide spindle for 55mm chainline, optimized for 148mm rear hub spacing
DUB DH spindle cranksets include the most robust dedicated 56.5CL
XX DH T-Type chainring available in 32-36t sizes
DUB Wide spindle cranksets include trail-oriented XX T-Type chainring in 32-36t sizes
Available in progressively short 150mm, 155mm, 160mm, and 165mm lengths

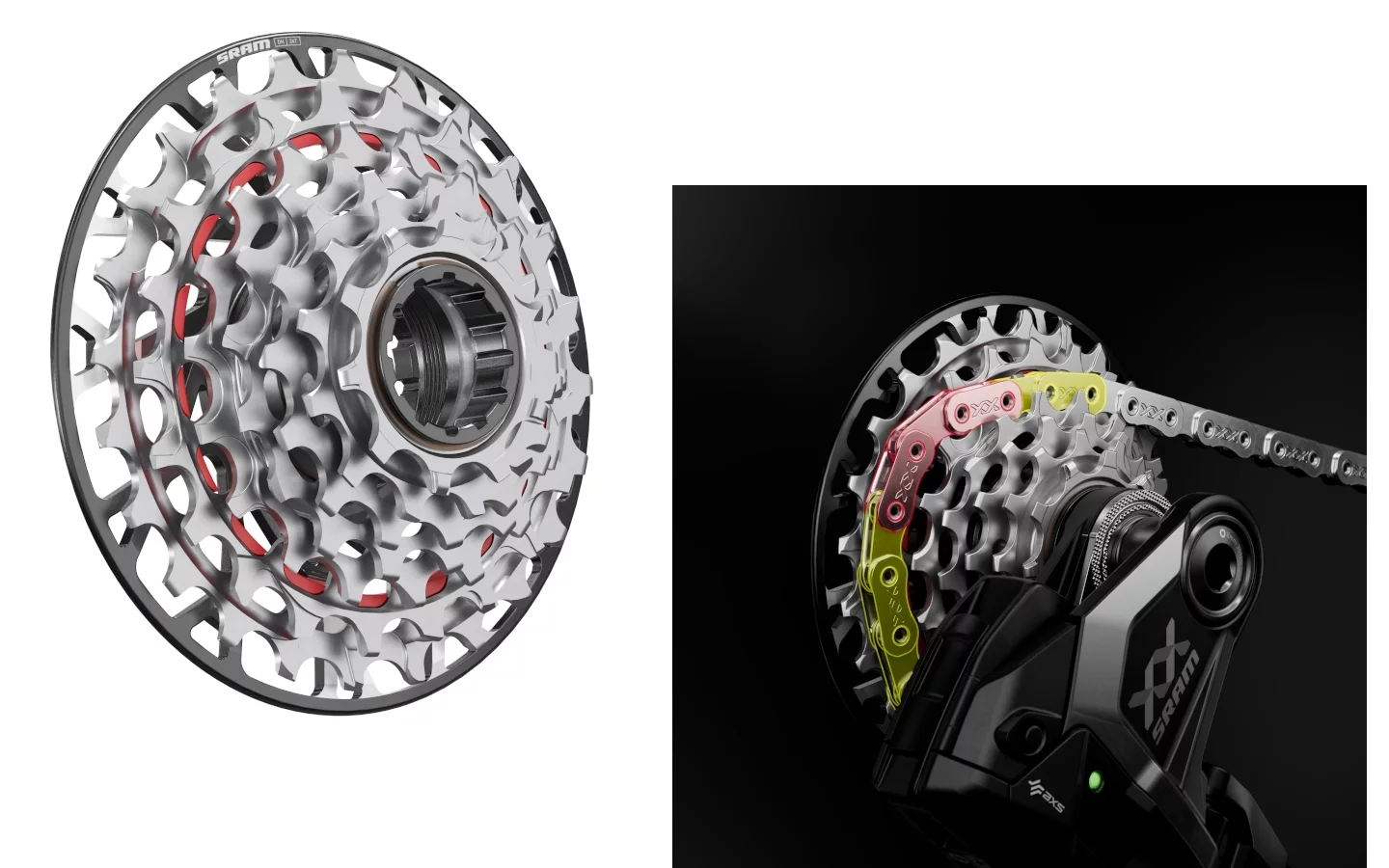

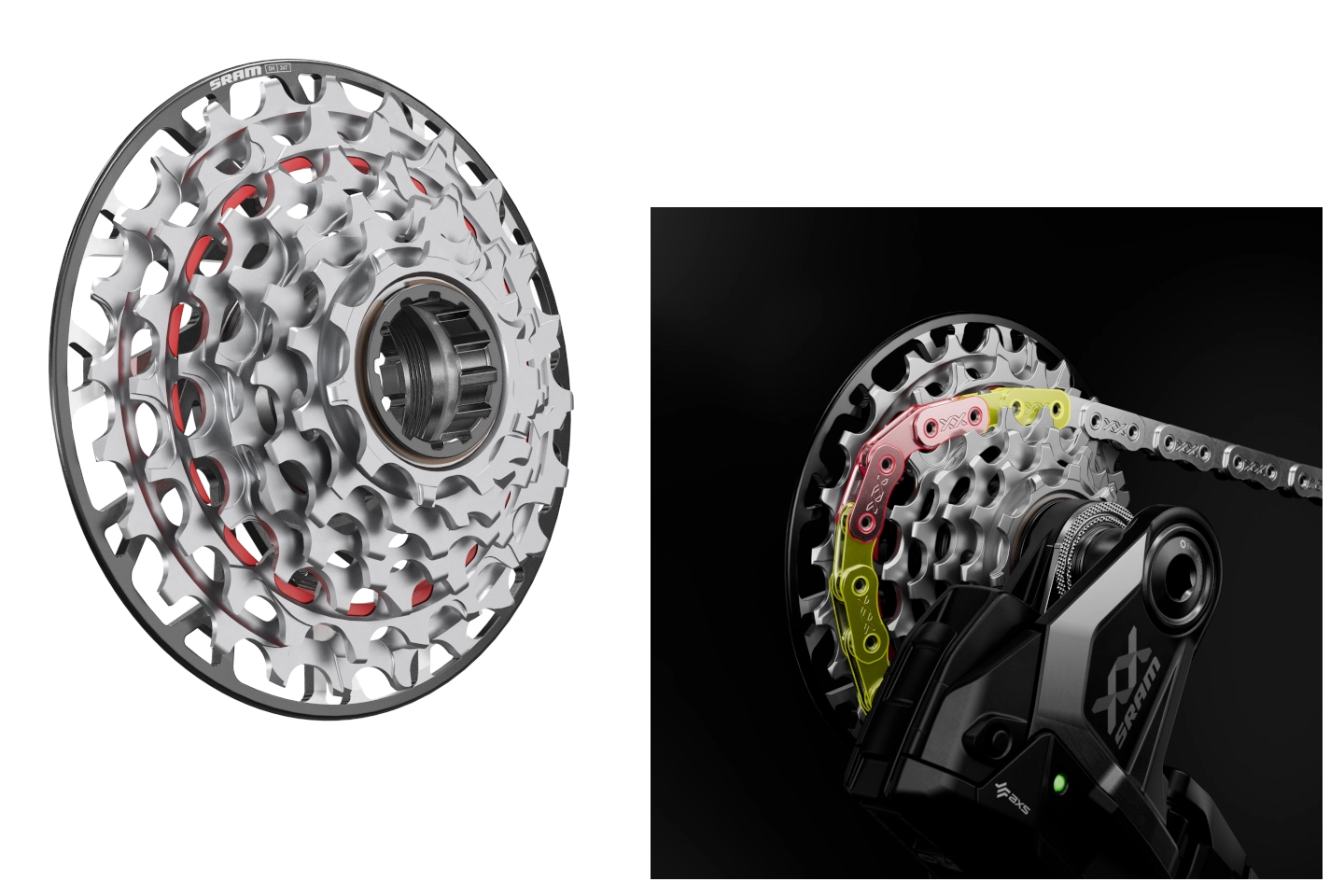

XX DH Transmission Cassette

The XX DH Transmission cassette is designed to deliver small steps for big power. With a full X-Sync tooth profile, the 7-Speed DH-specific cassette delivers the best shifting and most robust performance we have ever made. And just like Eagle Transmission, shifting under load isn’t just possible, it’s better. This allows you to maintain momentum when downshifting, enabling you to reach the next split faster than your competitors. And when milliseconds matter, XX DH Transmission might just be the difference between qualifying and going home. Available in two variants, XD and XD SLIM, to optimize for different hub dimensions.

Full X-Sync tooth profile for best-ever inboard and outboard shifting performance under load
Optimized 7-speed, 10-24t gear steps for DH
T-Type chain compatibility only
Set up Cog for a fool-proof setup
Utilizes well-accepted and broadly available XD driver body, or all-new gravity-specific XD SLIM driver body for more symmetric spoke bracing angles on narrow 148mm rear ends

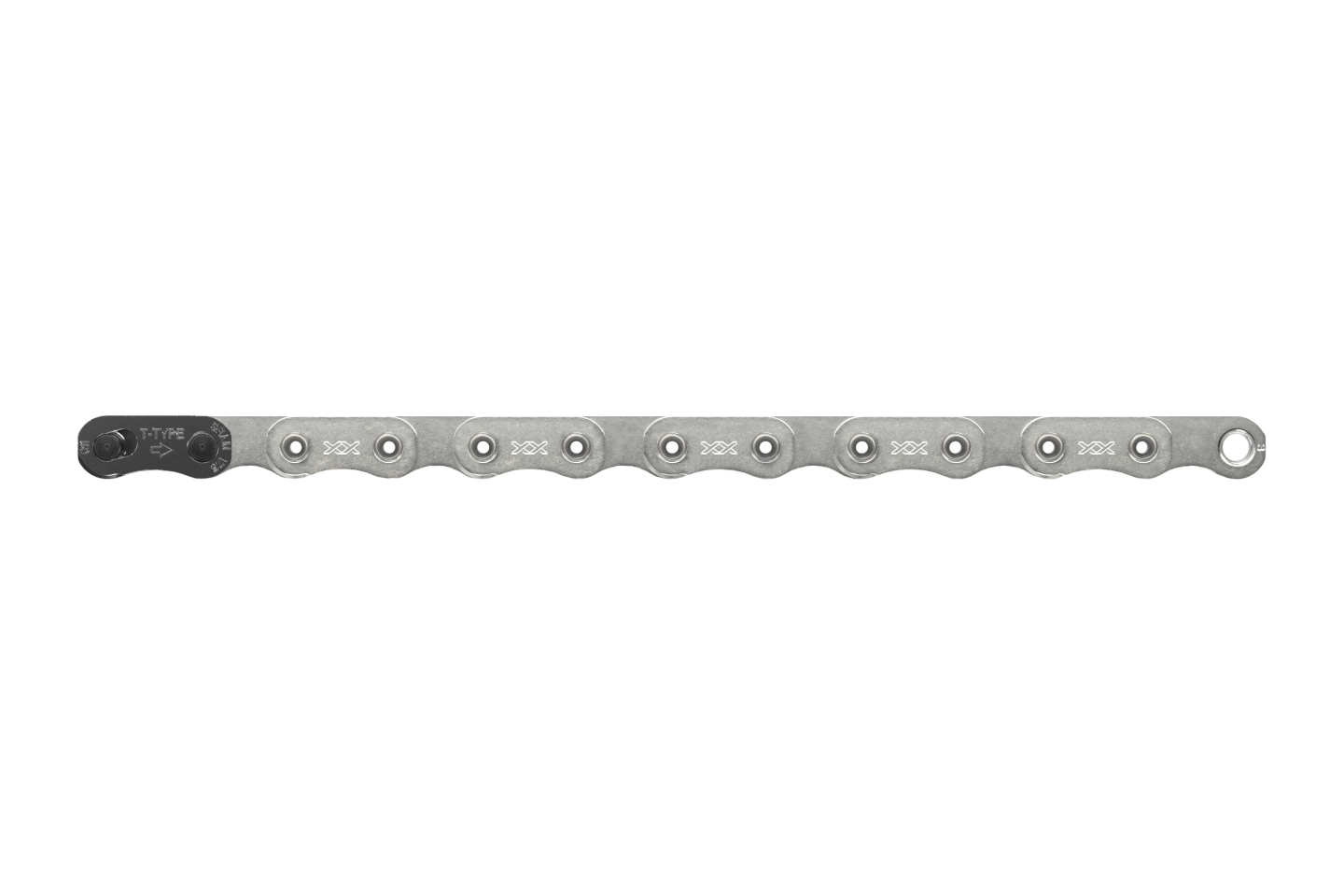

Eagle Transmission Flattop Chain

The first thing to know about the XX Eagle Transmission chain is that it’s the strongest we have ever made. Specifically engineered to optimize Eagle Transmission, this all-new T-Type design features a unique flat top. Not only does this shape maximize shifting performance, but it also contemporizes the look of your super bike. The chain features a hollow pin design and is finished in a long-wearing, high-durability chrome.

Strongest SRAM chain ever
Specifically engineered for Eagle Transmission
Flattop profile, smooth-shift bottom profile. Ultimate shifting performance, game-changing aesthetics
Longer-wearing, Hard Chrome finish and hollow pins

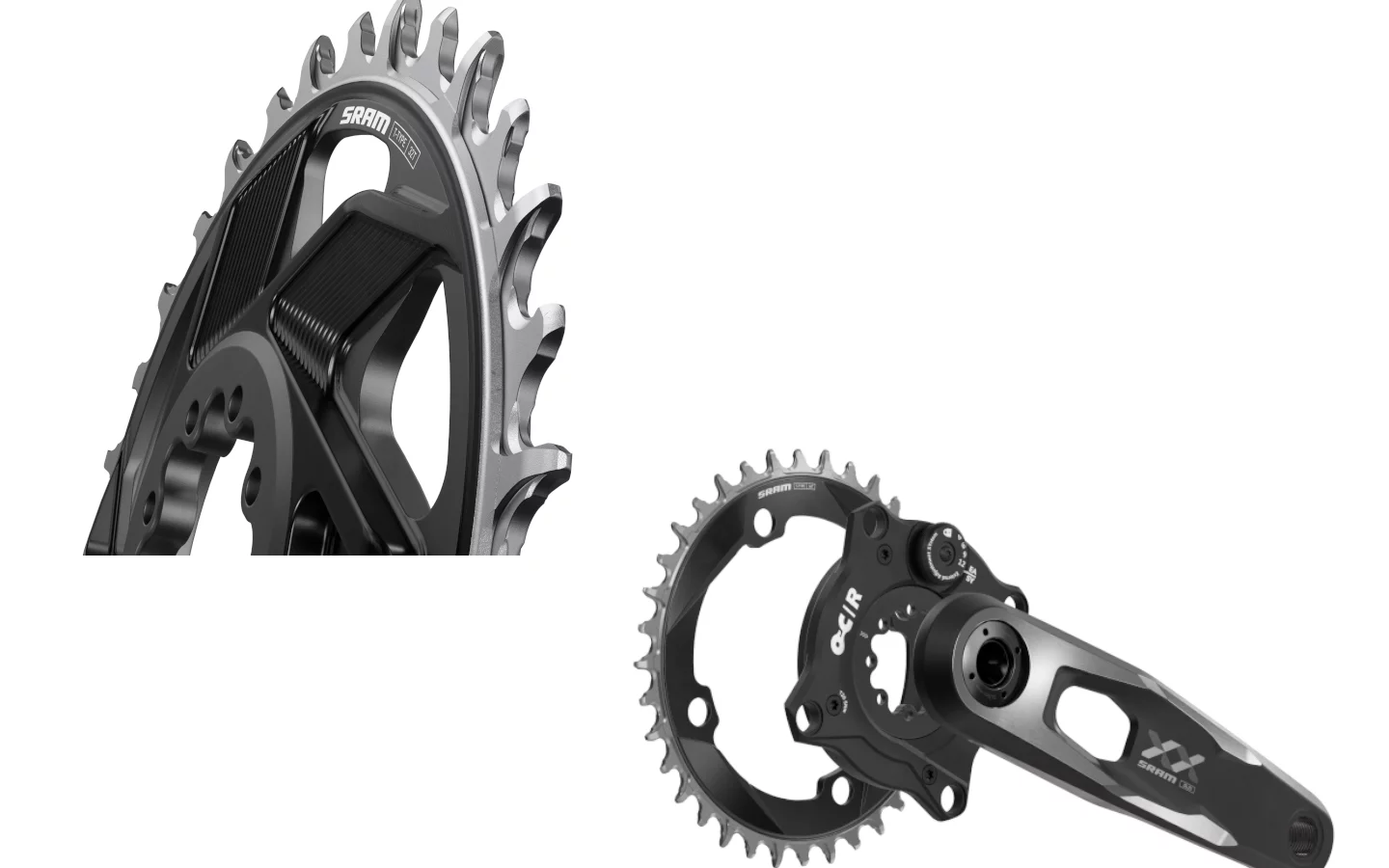

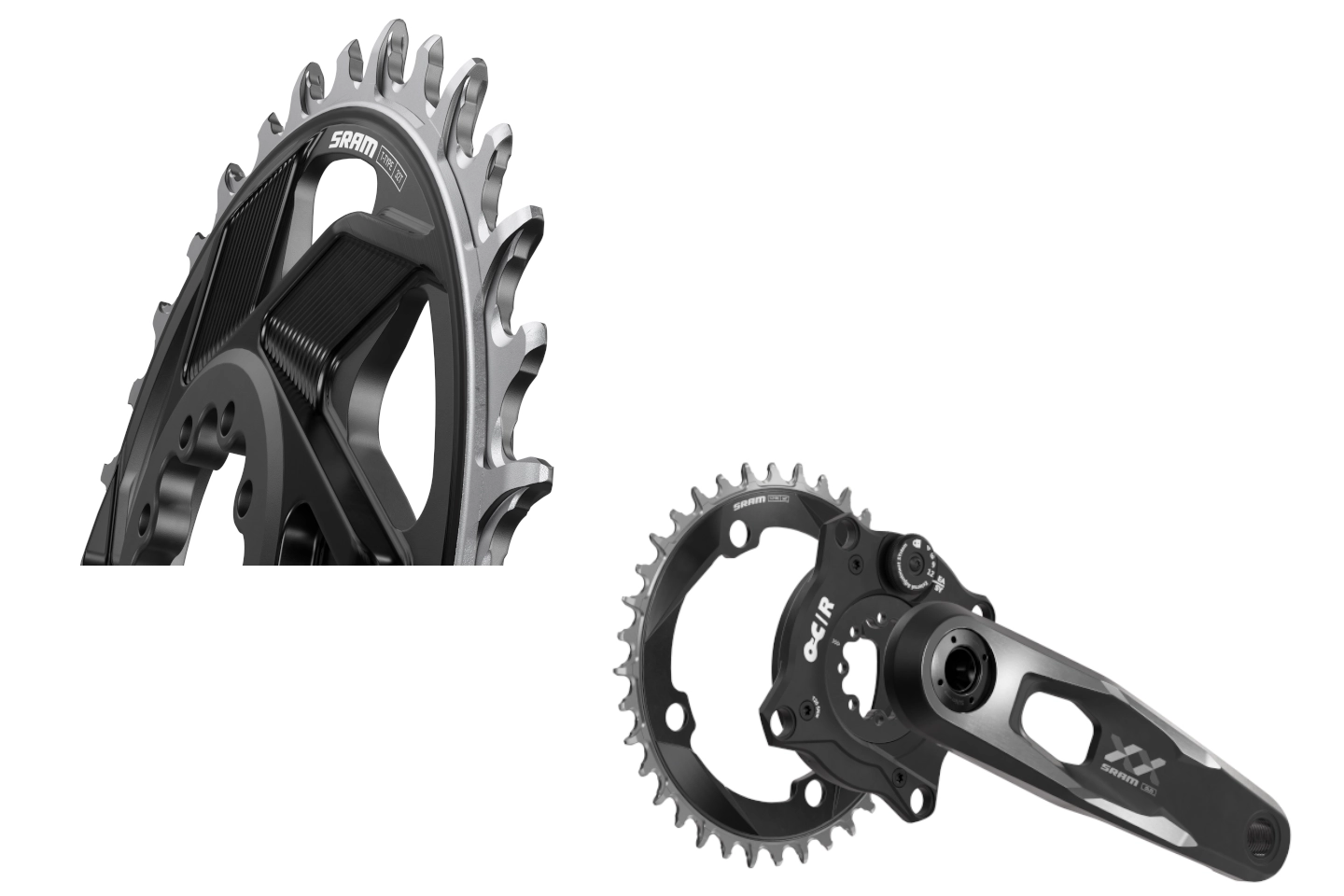

Eagle Transmission Chainring 104 BCD

Designed to integrate Ochain into the Eagle Transmission T-Type Ecosystem, this chainring features a 104 BCD interface and an optimized architecture for easy integration. The T-Type tooth profile ensures full compatibility with all other T-Type components, enabling Ochain to be used across all bike types, while providing better chain retention for a smoother, more confident pedal feel. XX design aesthetic pairs with all Eagle Transmission components.

104 BCD Compatible
Architecture optimized for use with all Ochain spiders
T-Type compatibility for use within the Eagle Transmission Ecosystem of components
Backwards compatible with Eagle Drivetrain (X-SYNC II) and SRAM DH drivetrains
E-MTB compatible
Aluminum (32T, 34T, 36T)
Mounting hardware included

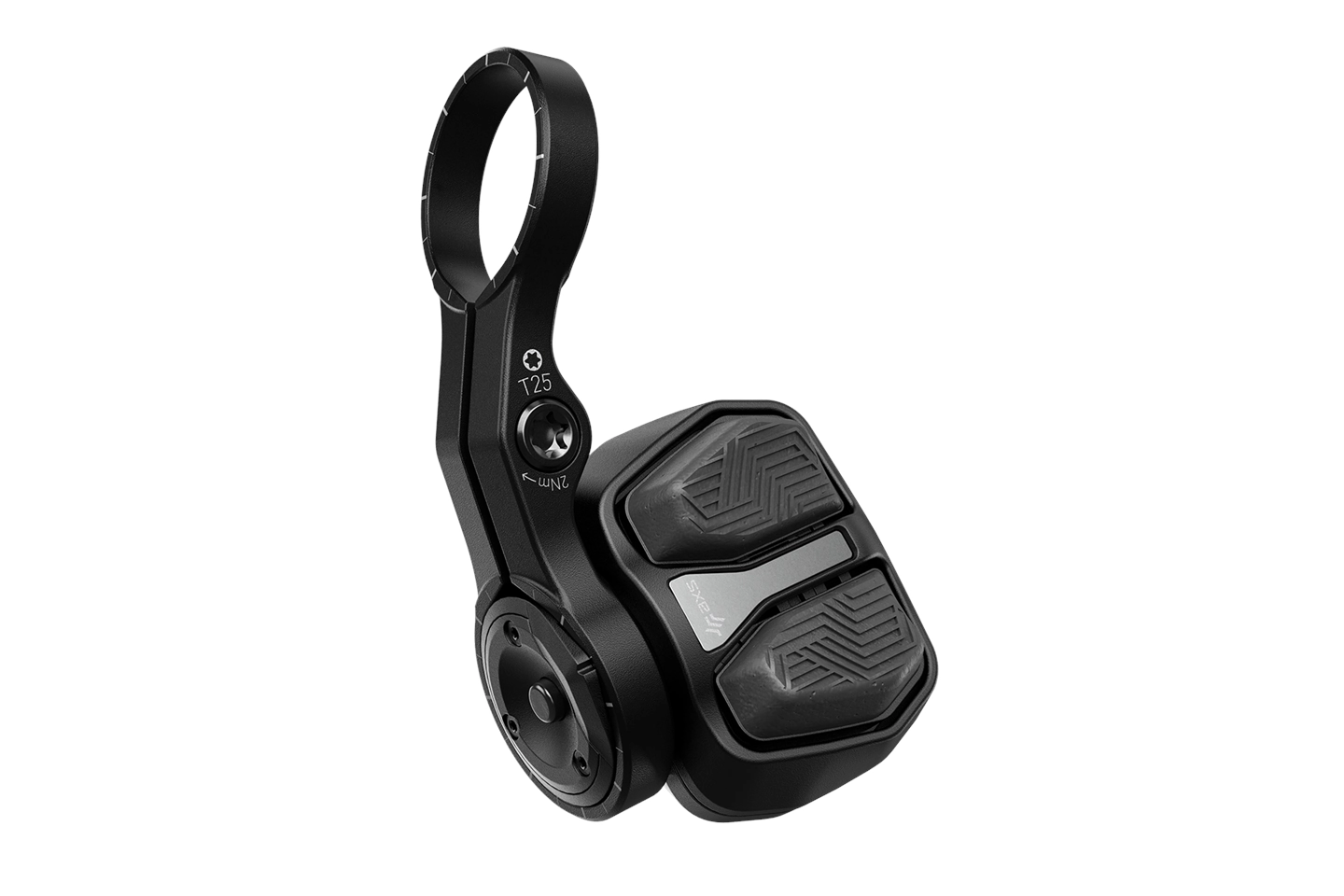

AXS Pod Ultimate Controller

The AXS Pod Ultimate is our most premium pod shifter. AXS Pod Ultimate is lighter than the Eagle Ecosystem AXS Controllers, features a completely new shape and ergonomics, and offers a vastly superior range of adjustability. Featuring a “click and fire” two-button design, with an intuitive action that requires the ideal amount of rider input to activate. Plus, it allows riders to personalize button assignments through the AXS App. AXS Pod Ultimate features interchangeable touchpoints for further customization and comfort based on the rider’s preferences. With its unique flippable design, AXS Pod Ultimate can be mounted left- or right-handed – it’s one component, with a world of possibilities. Finished with a premium high-polish casing to complete the look of your super bike.

Lighter weight, better and more adaptable ergonomics, superior adjustability, premium finish
All-new “Click and fire” two-button design. Intuitive and straightforward action requiring the ideal amount of rider input
Interchangeable convex and concave touchpoint buttons for a personalized feel
Personalization options for action designation through the AXS App
