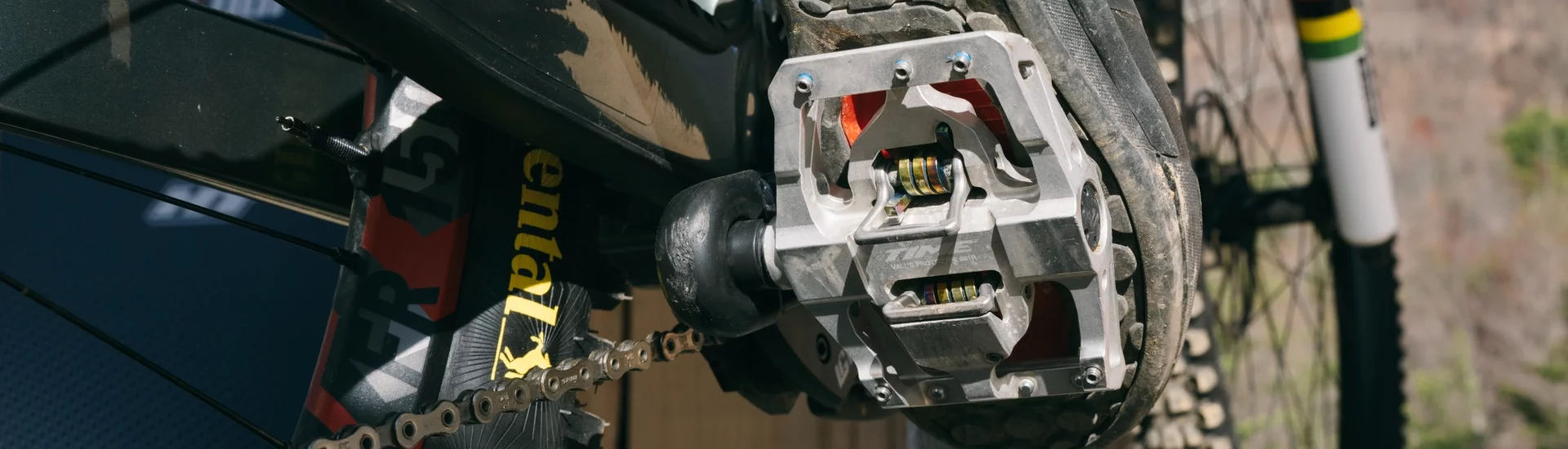

TIME XYSTO is a robust, full-bodied pedal system for downhill mountain biking, Enduro, and aggressive off-road riding. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.

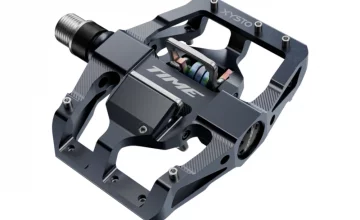

TIME introduces new MTB pedals XYSTO
10.04.2025
After a few years of silence, TIME has developed new clipless pedals for MTB. Would you like to know more about these pedals?

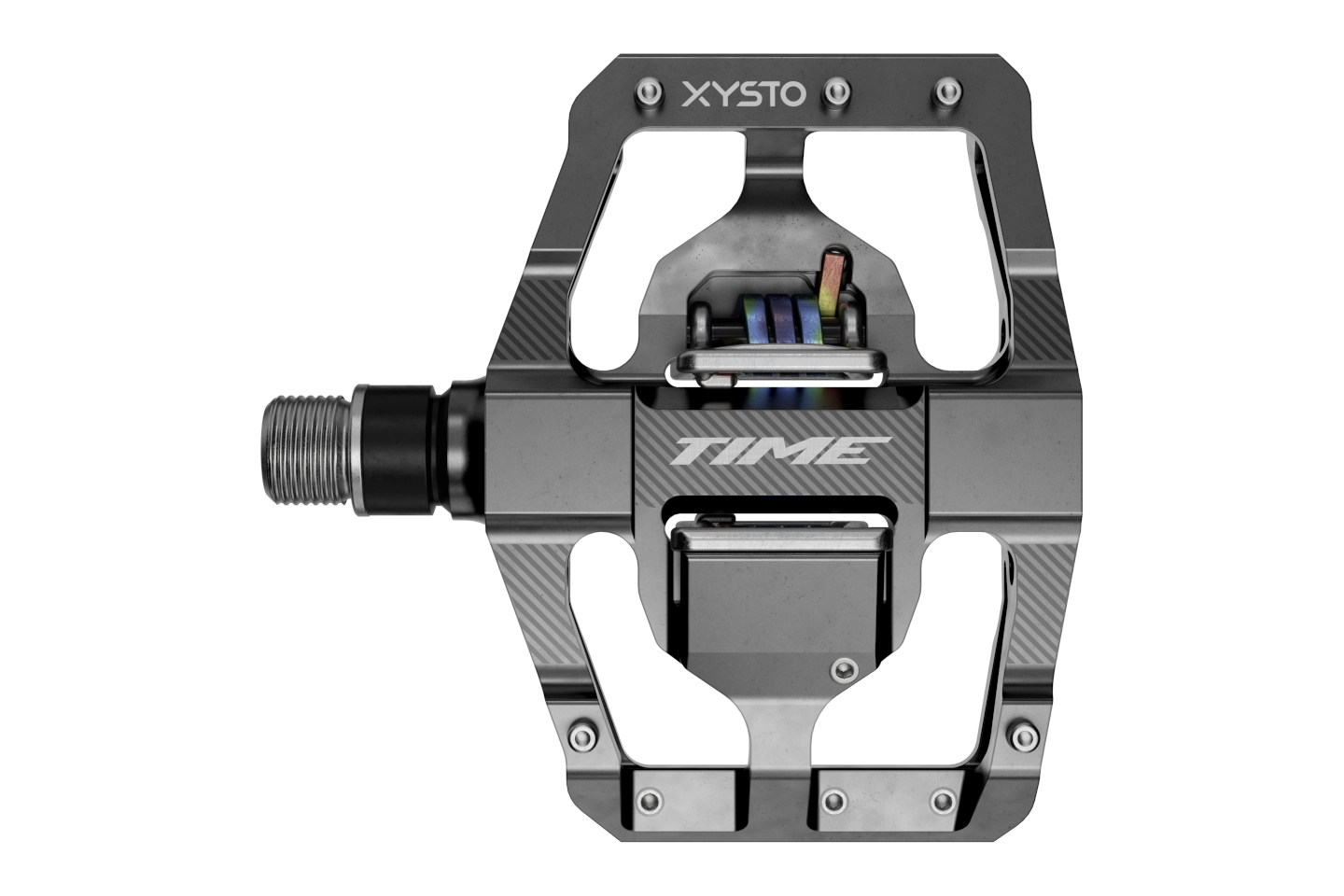

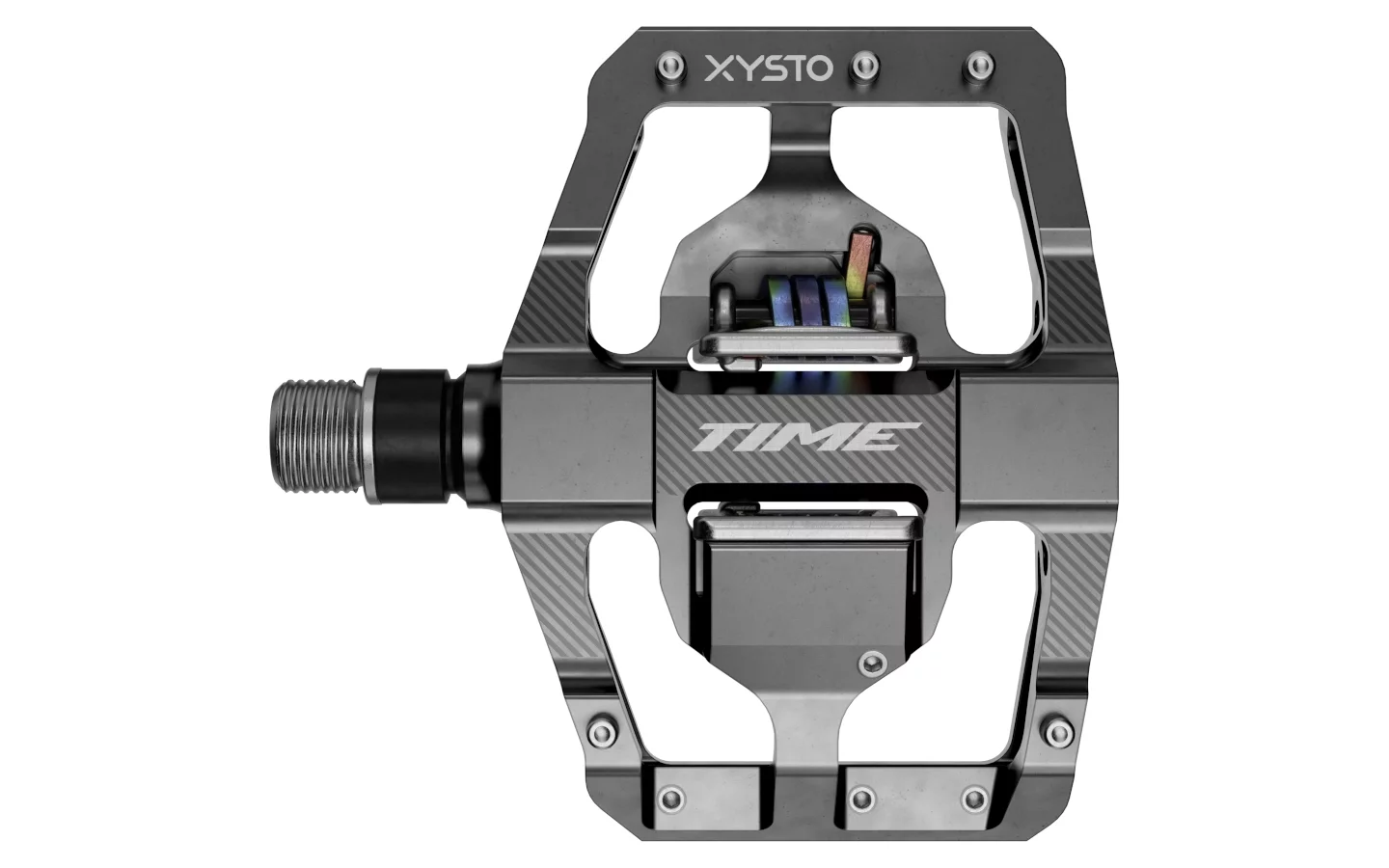

Key features
|
BEARINGS |
Steel |
|
BODY COMPONENT |
6106 T6 - Aluminum |
|
CLEATS |
ATAC 13°/17° Cleats included Compatible with ATAC EASY 10° Cleat |
|
PEDAL STACK HEIGHT |
18.3mm |
|
ANGULAR FREEDOM |
5° to -5° |
|
SPINDLE LENGTH |
57mm |
|
LATERAL FREEDOM |
+/- 2.5mm |
|
TENSION |
Micro Adjustment |
|
THREADING |
9/16" - 20tpi |
|
PLATFORM SIZE |
X-Large (79 X 94mm) |
|
COLOR |
Dark Grey |
|
WEIGHT (PER PEDAL) |
226g |
What could be interesting for you?
What is XYSTO?
Xisto (pronounced: Shis-Toe) or “Schist” in English is a type of stone found in the mountains around our Portugal factory. The loose, rocky trails inspired the development of the XYSTO pedal.
Will XYSTO pedals make me faster?
No. But a XYSTO pedal prototype won a UCI World Championship in 2024. These pedals have been developed in collaboration with Commencal/Les Orres, Remy Metallier, Mitch Ropelato, and Brayden Bringhurst.
What warranty and service options are available for TIME XYSTO pedals?
SRAM’s 2-year warranty covers TIME XYSTO pedals, and they are not serviceable.
Does the XYSTO pedal have adjustable or replaceable grip pins?
Yes. XYSTO pedals use the same adjustable and replaceable pins as our Speciale pedals.
Year: 2025
Brands: Time
Published: 10.04.2025, Updated: 10.04.2025 15:51
